Home » Product » NEW Product » Thick Frame Series » 185W Non Glass Lightweight Solar Panel -Thick Frame Series

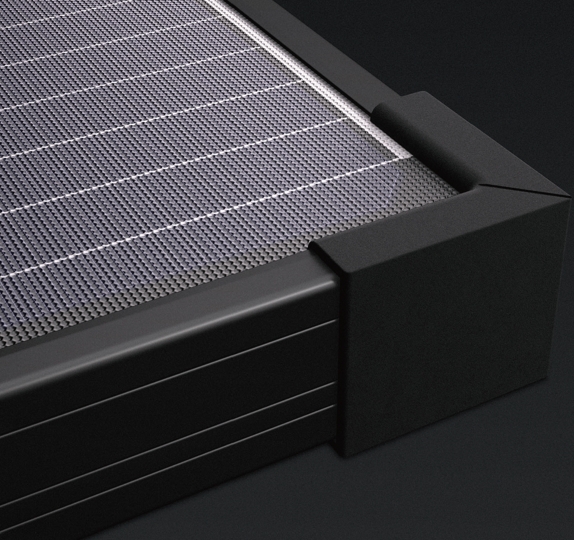

185W Non Glass Lightweight Solar Panel -Thick Frame Series

Applications:• For industry, agriculture, shipping and building sectors

Share to:

Model Number: BS185-FR-M(E)
Brand: Bright Solar
Max Power Pm(Wp): 185W
Max Working Voltage (Vmp): 18.00V
Solar Cell: 166*166mm/Mono
Product Dimension: 1386*704*35mm
Cells Efficiency: 22.5%
Warranty: 3 year

Specification Product Description Downloads

Model Number	BS185-FR-M(E)
Power	185W
Max Working Voltage (Vmp)	18.00V
Max Operating Current(Ipm)	10.30A
Open Circuit Voltage (Voc)	21.60V
Short Circuit Current (Isc)	10.50A
Product Size	138670435mm
Solar Cell	166*166mm/Mono
Efficiency	22.5%
Tolerance	+3%
Warranty	3 year
Weight	5.7 KG
