160W Flexible Solar Panel M-Series

M series is a dedicated design for RV applications, M series has very good reliability, durability, Solar energy can be easily installed on the car roof of the car to provide electricity anytime anywhere. -PERC A-grade monocrystalline silicon solar cell, high performance even with low light -Conversion efficiency reach 22.55%~22.65% -IP67 waterproof junction box and MC4 junction box ,100% protection cable output.

Share to:

Model Number: BS160-FA-M(E)
Brand: Bright Solar
Max Power Pm(Wp): 160W
Max Working Voltage (Vmp): 18V
Solar Cell: 166*166mm/Mono

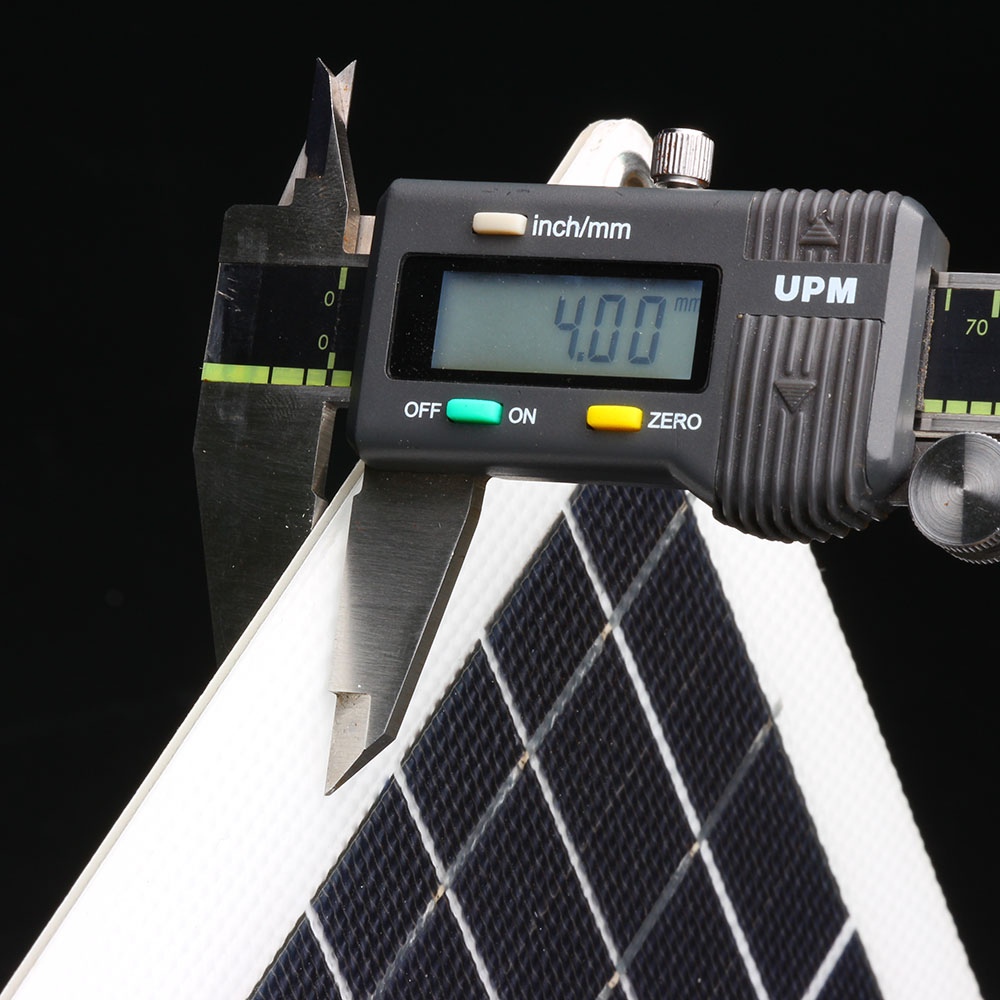

Product Dimension: 1270*700*4mm
Cells Efficiency: 22.5%
Warranty: 2 years

Specification Product Description Downloads

Model Number	BS160-FA-M(E)
Model	BS160-FA-M(E)
Max Power Pm(Wp)	160W
Power	160W
Max Working Voltage (Vmp)	18V
Vmp	18V
Max Operating Current(Ipm)	8.89A
Open Circuit Voltage (Voc)	21.6V
Short Circuit Current (Isc)	9.6A
Isc	9.6A
Product Size	12707004mm
Size	12707004mm
Solar Cell	166*166mm/Mono
Cell	166*166mm/Mono
Efficiency	22.5%
Tolerance	0~+3%
Warranty	1Year

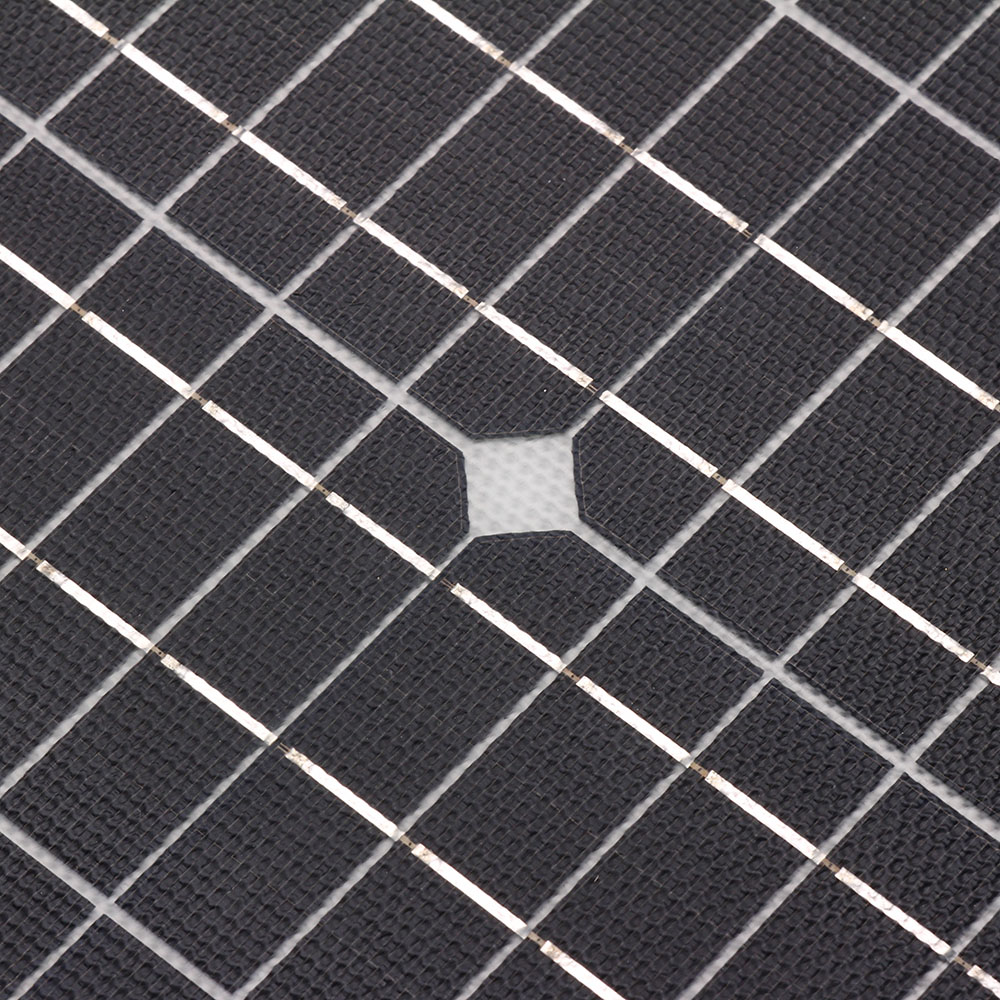

-PERC A-grade monocrystalline silicon solar cell, high performance even with low light

-Conversion efficiency reach 22.55%~22.65%

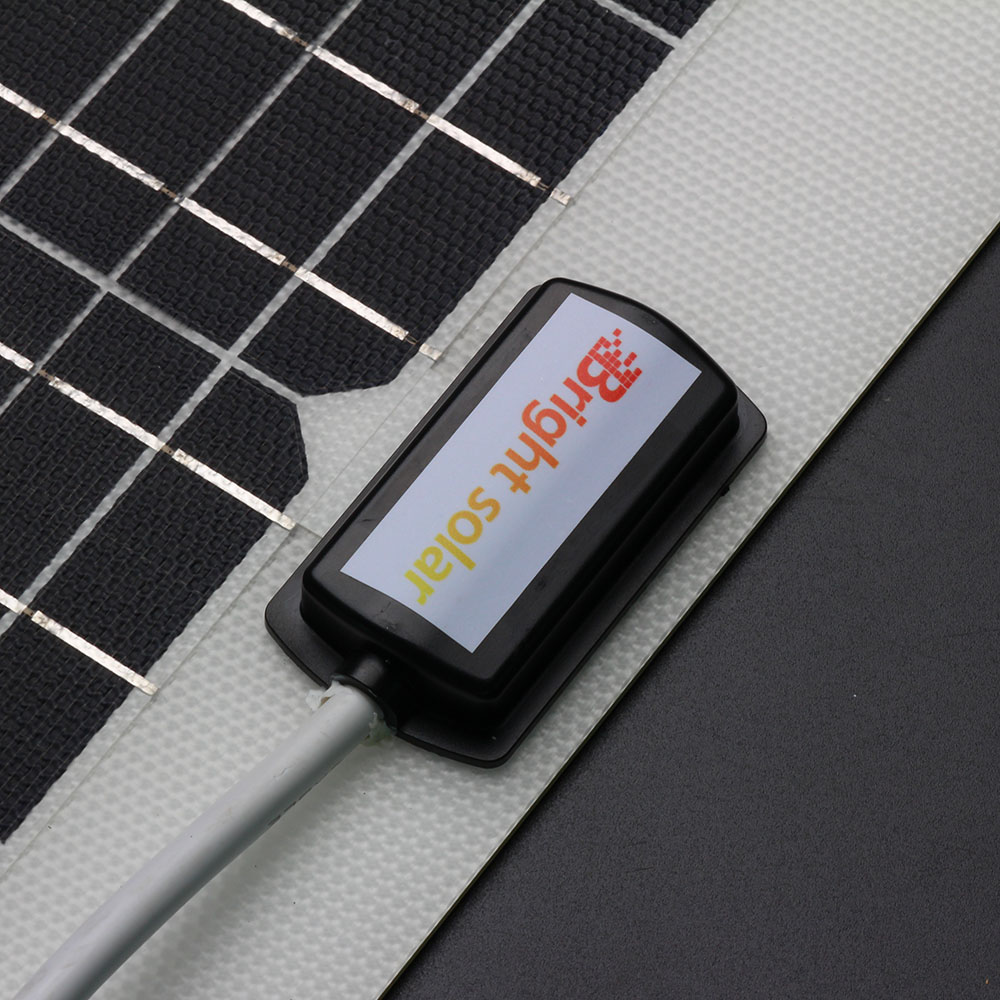

-IP67 waterproof junction box and MC4 junction box ,100% protection cable output.

Product information

Flexible solar panel M series.pdf Download
