Home » Product » Flexible Solar Panel » L Series » 140W Semi Flexible Solar Panel best solar kit solar system for off grid cabin

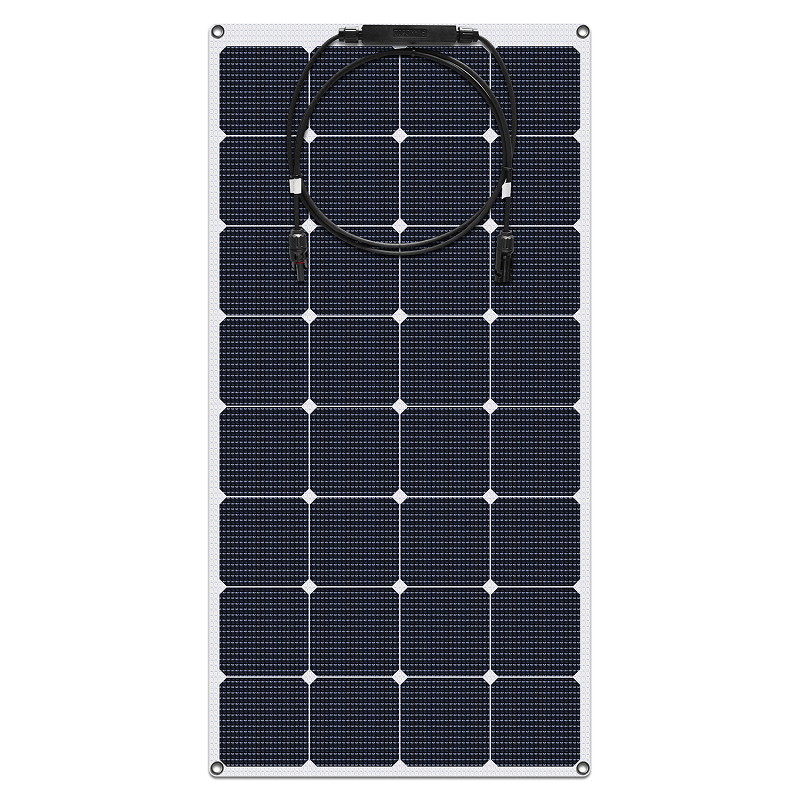

140W Semi Flexible Solar Panel best solar kit solar system for off grid cabin

Model:BS140-FT-S(P) Brand:Bright Solar Solar cell: Sunpower Efficiency:23% surface material: ETFE Size: 1220*670*2.8mm
Share to:
  • Model Number: BS140-FT-S(P)
  • Brand: Bright Solar
  • Max Power Pm(Wp): 140W
  • Max Working Voltage (Vmp): 18/36V
  • Solar Cell: 158*158mm/Mono
  • Product Dimension: 1220*670*2.8mm
  • Cells Efficiency: 23%
  • Warranty: 2 years
contact us
Specification Product Description Downloads
Model BS140-FT-S(P)
Power 140W
Max Working Voltage (Vmp) 18/36V
Max Operating Current(Ipm) 7.78A
Open Circuit Voltage (Voc) 21.6/43.2V
Short Circuit Current (Isc) 8.4A
Product Size 1220*670*2.8mm
Solar Cell 158*158mm/Mono
Efficiency 23%

Features

• Lightweight, easy to install
• Tough & Durable
• 2 years warranty
• Flexibility 30%~35%
• 316 stainless steel eyelet for easy fixing and installation
• Rounded corners to prevent risk of injuries


ModelBS140-FT-S(P)
Power140W
Vpm18/36V
Ipm7.78A
Voc21.6/43.2V
Isc8.40A
Efficiency23%
Solar cellSunpower
Power temperature coefficient-0.42%/℃
Voltage temperature coefficient-0.32%/℃
Current temperature coefficient0.04%/℃
Output power tolerance±3%
Operating temperature-40~80℃
Size 1220*670*2.8mm
ConnectorMC4
Junction boxIP67 Junction box+900mm 4mm² PV cable

Product information

  • Bright Solar Sunpower panel Specifications.pdf Download
