Home » Product » NEW Product » Thin Frame Series » 200W Non Glass Lightweight Solar Panel -Thin Frame Series

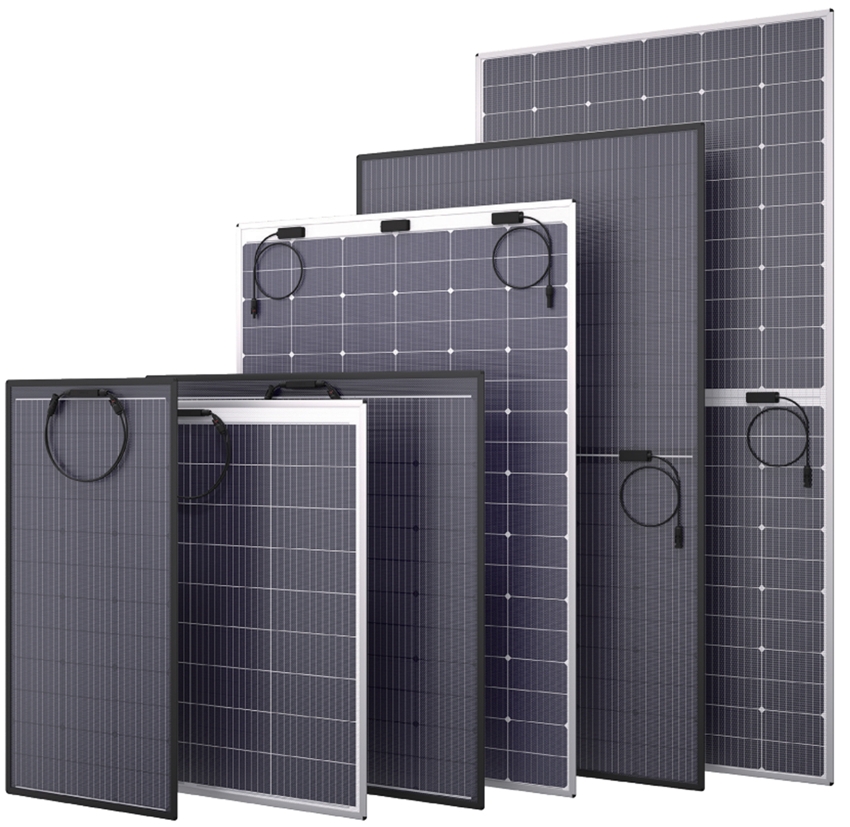

200W Non Glass Lightweight Solar Panel -Thin Frame Series

• For industry, agriculture, shipping and building sectors

Share to:

Model Number: BS200-SR-M(E)
Brand: Bright Solar
Max Power Pm(Wp): 200W
Max Working Voltage (Vmp): 20.00V
Solar Cell: 166*166mm/Mono
Product Dimension: 1134*1072*5mm
Cells Efficiency: 22.5%
Warranty: 3 year

Specification Product Description Downloads

Model Number	BS200-SR-M(E)
Power	200W
Max Working Voltage (Vmp)	20.00V
Max Operating Current(Ipm)	10.00A
Open Circuit Voltage (Voc)	25.00V
Short Circuit Current (Isc)	10.60A
Product Size	113410725mm
Solar Cell	166*166mm/Mono
Efficiency	22.5%
Tolerance	+3%
Warranty	3 year
Weight	4.3 KG
