Why Bright Solar H Series Is Suitable for Complex Marine Environments?

Best Advanced Technology For Flexible Marine Solar Panels

  • 01

    Weather-Resistant and Durable Design

    Manufactured with high-strength polymer materials and ETFE coating technology, the Marine Flexible Solar Panels withstands UV exposure, rain, salt mist, and temperature changes in marine environments. Its flexible structure maintains durability without adding excessive weight, making it suitable for yachts, flexible solar panels for RV installations, and outdoor off-grid systems.
  • 02

    Modular and Flexible Expansion Compatibility

    Supports modular series and parallel connections for different installation spaces and power requirements. From compact 200 watt flexible solar panel systems to larger 400w flexible solar panels setups, the H Series Flexible Solar Panels Marine adapts easily to marine vessels, RV roofs, and portable solar applications.
  • 03

    Delamination-Resistant Encapsulation Technology

    The laminated encapsulation structure improves resistance against vibration, mechanical stress, and long-term outdoor exposure. This helps maintain stable output performance while reducing the risk of layer separation, lowering maintenance costs for marine and off-grid installations.

Rugged & Tough Design for Marine

Designed for harsh outdoor conditions, the H Series Flexible Solar Panels Marine uses impact-resistant materials and reinforced structural components to improve durability. Suitable for boats, rooftops, terraces, and flexible rv solar panels applications, it provides stable power generation while reducing the risk of cracks and surface damage.

Flexible Marine Solar Panels Product Specifications

Support Customize
Model Number BS35-FS-M(E) BS50-FS-M(E) BS70-FS-M(E) BS80-FS-M(E) BS100-FS-M(E) BS120-FS-M(E) BS140-FS-M(E) BS150-FS-M(E) BS160-FS-M(E) BS200-FS-M(E)
Nominal peak power(WP) 35W 50W 70W 80W 100W 120W 140W 150W 160W 200W
Max Operating Voltage (Vmp) 20.00V 20.00V 18.00V 20.00V 20.00V 18.50V 20.00V 18.50V 21.00V 20.00V
Max Operating Current (lpm) 1.75A 2.50A 3.88A 4.00A 5.00A 6.48A 7.00A 8.11A 7.61A 10.00A
Open Circuit Voltage (Voc) 25.00V 25.00V 21.60V 25.00V 25.00V 23.10V 25.00V 24.00V 25.20V 25.00V
Short Circuit Current (Isc) 1.89A 3.00A 4.20A 4.11A 5.40A 6.99A 7.56A 8.22A 8.21A 12.50A
Product Size(mm) 600*365*4 572*532*4 735*530*4 802*582*4 1072*532*4 1072*582*4 1167*582*4 1220*670*4 1250*700*4 1572*702*4
Weight(Kg) 1.58KG 2.19KG 2.81KG 3.37KG 4.00KG 4.50KG 4.90KG 5.90KG 5.93KG 7.79KG
Solar Cell Type 166*166mm Mono
Efficiency 22.5%-25.8%
Max system voltage 150-300VDC
Color BLACK/WHITE
Tolerance 0~+3%
Accessories(Optional) 4.0m² 90cm (+),90cm (-) PV Cables + MC4 Connectors or Single 2-core 2*2.5m² Cable
Customization service Supports Custom Sizes

Why Bright Solar H Series Suitable For Marine Project ?

  • Walkable Design & Step On Test

    Built with reinforced materials for demanding marine environments, the H Series Flexible Solar Panels Marine supports normal onboard foot traffic during installation and maintenance. Each Marine Flexible Solar Panels undergoes real-world walk-on testing to verify structural stability for yacht decks, rooftops, and marine applications.

  • Anti-Slip & Impact Resistant Design

    The textured ETFE surface improves slip resistance on wet marine decks while enhancing overall durability. Its reinforced double-layer structure helps reduce surface damage and protects internal solar cells from impacts during daily onboard use.

  • Saltwater Resistance & Weather Resistance

    Manufactured with corrosion-resistant materials and protective sealing technology, the H Series Flexible Solar Panels Marine is designed to withstand saltwater, humidity, and changing weather conditions. The IP67 waterproof structure helps maintain reliable power output for yachts, RVs, and outdoor off-grid systems.

  • Ideal for Deck

    Designed for marine deck installations, the H Series Soft Solar Panel Marine combines lightweight construction with reliable solar performance. The flexible solar panel kit fits curved yacht surfaces without heavy mounting systems, helping maintain a clean and low-profile appearance.

Marine Flexible Solar Panel Installation Guide

This guide covers key considerations for marine flexible solar panel installation, including space measurement, shading assessment, deck curvature, mounting methods, electrical system compatibility, wiring, and quality inspection. Bright Solar helps boat manufacturers, yacht brands, and marine system integrators evaluate panel suitability and plan reliable marine solar solutions.

  • Measure Available Installation Space

    Measure deck dimensions, identify obstacles, and provide CAD drawings to ensure accurate panel sizing and layout planning.

  • Assess Shading and Optimize Layout

    Evaluate shadows from masts, sails, and deck equipment to optimize panel placement and reduce shading-related power losses.

  • Select Suitable Mounting Methods

    Check deck materials, surface conditions, and panel compatibility to determine reliable mounting solutions for marine environments.

  • Verify Quality and Product Traceability

    Review EL and IV test data, pre-shipment inspections, and batch records to support product quality and traceability.
Learn More

Professional Process, Perfectly Showcasing Yacht's Value

Bright Solar H Series Soft Solar Panel Marine utilizes premium materials and features a flawless aesthetic design, seamlessly integrating with marine equipment. Combining beauty and strength, it not only enhances Marine Flexible Solar Panels corrosion resistance but also simplifies installation. Offering customizable service and surface designs, it perfectly adapts to all types of marine equipment. H Series Soft Solar Panel Marine typically utilizes SunPower/Mono/BC Cells. Compared to traditional panels, they deliver optimal power generation per square foot within suitable spaces. The unique characteristics of deck structures often restrict the installation of rigid panels. The ultra-lightweight design makes them a popular choice for portable installations in marine applications.
    Get A Quote

    How to Customize Flexible Solar Panels for Your Project?

    Define project requirements
    You provide the application scenarios and target markets for the solar panels. Whether it's yacht integration, boat equipment integration, or branded product development, clearly defining project requirements helps Bright Solar assess the feasibility of customization and recommend suitable product solutions.
    Custom panel size, shape and mounting structure
    Based on the boat's space, mounting surface curvature, and available area, confirm the panel dimensions, shape, thickness, and installation requirements. We need you to provide dimensional drawings, CAD drawings, or photos of the installation area to assess structural compatibility and confirm cable exits, mounting methods, and other mechanical design requirements.
    Matching power, electrical parameters and shipboard systems
    We need you to provide the system voltage, controller model, battery specifications, and target power so that Brightsolar can confirm the battery cell technology, power, voltage, current, and series/parallel configuration. Verifying the component parameters against the system requirements reduces specification mismatch issues during subsequent integration.
    Confirm the suitability of materials, surface treatments, and marine environments.
    You need to specify the usage environment, applicable standards, and special performance requirements. Bright Solar will then evaluate the panel surface materials, encapsulation structure, back panel materials, and mounting methods accordingly. For specific requirements such as UV protection, humidity, salt spray, vibration, or foot traffic, we will provide clear technical specifications and confirm the relevant testing standards and applicable conditions.
    Determine connection configuration, brand customization, and procurement conditions.
    Confirm your customization requirements, including cable length, cable exit point, connectors, junction box, logo, labeling, and packaging. Also, verify the minimum order quantity, sample costs, bulk quotes, delivery time, and quality acceptance standards to ensure the technical solution aligns with your procurement plan.
    Confirm samples, technical specifications, and mass production.
    Based on the final confirmed specifications, sample evaluation is conducted to check dimensions, appearance, electrical performance, and installation compatibility. After sample confirmation, product specifications, quality acceptance requirements, packaging, and delivery plans are finalized before mass production and shipment inspection are arranged to reduce the risk of specification deviations in bulk procurement.

    Get a customized solution for your marine solar project

    Provide your project requirements, and Bright Solar will assess product configurations, customize feasibility, and develop supply solutions based on those requirements.

    Start Your Custom Project

    Project Case Reference

    Bright Solar has supplied over 50,000 off-grid solar systems worldwide. Our partners power 10,000+ RVs, yachts, rooftops, and balconies, providing reliable, high-performance off-grid solutions for local markets.

    • Flexible Solar Panels RV Project

      Bright Solar worked with German RV manufacturers to develop lightweight flexible solar panel systems that improve rooftop energy generation while reducing installation weight and transportation pressure.
      Know MoreInquiry Now

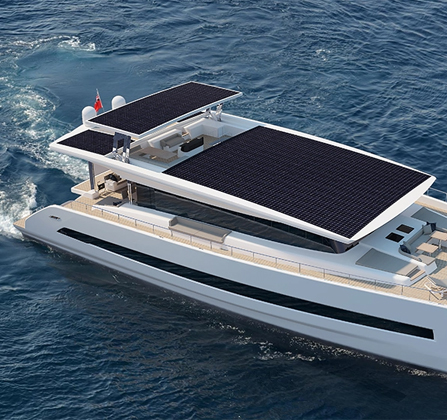

    • Bright Solar Powers Italy Yacht

      Bright Solar partners with major yacht manufacturers to integrate clean energy solutions, enhancing the added value of yachts. This collaboration helps partners expand their market reach and enrich the experience for yacht users.
      Know MoreInquiry Now

    • Custom Mono Semi- Flexible Solar Panel

      Custom Mono Semi- Flexible Solar Panel solutions for RVs, SUVs, and vans. Explore custom sizes, 160-190W options, heat dissipation, and flexible installation.
      Know MoreInquiry Now

    Our customers give this evaluation

    Read feedback from installers, engineers, system integrators, and renewable energy professionals worldwide. Their experiences highlight Bright Solar's flexible solar panels for lightweight design, installation flexibility, durability, and reliable performance across RV, marine, off-grid, and mobile solar applications.

    System integrator using CYKEO handheld RFID reader in warehouse project

    James Wilson – Marine Systems Integrator (USA)

    ⭐⭐⭐⭐⭐

    We evaluated Bright Solar Marine Flexible Solar Panels for a yacht solar project, where available deck space and equipment placement were key considerations. The lightweight design made it easier to plan panel layouts around existing deck structures. Bright Solar's technical team helped us review electrical specifications and cable configurations before installation. The support was practical and helped our team prepare for system integration more efficiently.

    Software developer integrating CYKEO RFID handheld scanner into logistics software

    Oliver Bennett – Yacht Equipment Manufacturer (UK)

    ⭐⭐⭐⭐⭐

    We considered Bright Solar Marine Flexible Solar Panels for a marine equipment project involving curved installation surfaces and limited mounting space. The flexible format gave us more options when planning the panel layout. Bright Solar provided technical information to help us assess product dimensions, mounting compatibility, and installation requirements. The communication was clear throughout the evaluation process, making it easier to coordinate our engineering work.

    Procurement manager reviewing CYKEO handheld RFID scanners for retail deployment

    Mohammed Al-Hassan – Marine Procurement Manager (UAE)

    ⭐⭐⭐⭐⭐

    We sourced Bright Solar Marine Flexible Solar Panels for a boat solar power project in the UAE. Our team needed to confirm product specifications, connector options, and compatibility with the existing electrical system before moving forward. Bright Solar responded to our technical questions and helped clarify the information required for project assessment. The coordinated communication supported our procurement planning and helped us prepare for the next stage of installation.

    RFID engineer testing CYKEO handheld reader in factory environment

    Rafael Costa – Marine Solar Project Engineer (Brazil)

    ⭐⭐⭐⭐⭐

    Our team assessed Bright Solar Marine Flexible Solar Panels for an off-grid power application on a recreational vessel. The project required careful consideration of partial shading, deck conditions, and cable routing. Bright Solar supplied product information and technical guidance that helped us review the proposed configuration. The discussions around installation conditions and electrical compatibility were useful during the design stage and supported our system planning.

    Frequently Asked Questions About H Series

    Thank you for your interest in our Marine Flexible Solar Panels. Here, Bright solar will provide you with more professional answers and solutions you are looking for.

    • How efficient are flexible solar panels in overcast/cloudy weather?

      Flexible solar panels still generate electricity in cloudy weather, although output will be lower than under direct sunlight. High-efficiency mono cells help maintain stable charging performance for marine batteries and onboard devices.

    • Can I walk on the surface of flexible solar panel ?

      Yes. The Bright Solar H Series Flexible Marine Solar Panels is designed with a reinforced walkable structure suitable for normal foot traffic on yacht decks and marine installations.

    • Can flexible solar panels be bent ?

      Yes. Flexible solar panels can adapt to slightly curved surfaces commonly found on boats, RV roofs, and marine decks. Excessive bending should still be avoided.

    • What is a flexible solar panel?

      A flexible solar panel is a lightweight solar module designed for curved or weight-sensitive surfaces where traditional rigid panels are difficult to install.

    • Can I clean flexible solar panels?

      Yes. Use fresh water and a soft cloth to remove salt residue, dust, and debris. Regular cleaning helps maintain charging efficiency in marine environments.

    • How Four Simple Solar Panel 100W Flexible Units Solved Our Liveaboard Power Problems

      Four 100W flexible panels were installed on a curved yacht deck where rigid panels could not fit properly, providing stable daily charging for lighting, batteries, and onboard electronics.

    • What is the typical lifespan of a flexible solar panel?

      A high-quality marine flexible solar panel typically lasts 8–15 years depending on installation conditions, UV exposure, and maintenance frequency.
