10W 18V Semi Flexible Solar Panel M-Series

Applications For motor boats and sailing yachts For Lightweight roof, balcony For outdoor activities For industry, agriculture, shipping and building sectors.

Share to:

Model Number: BS10-FA-M(E)
Brand: Bright Solar
Max Power Pm(Wp): 10W
Max Working Voltage (Vmp): 18V
Solar Cell: Mono crystalline

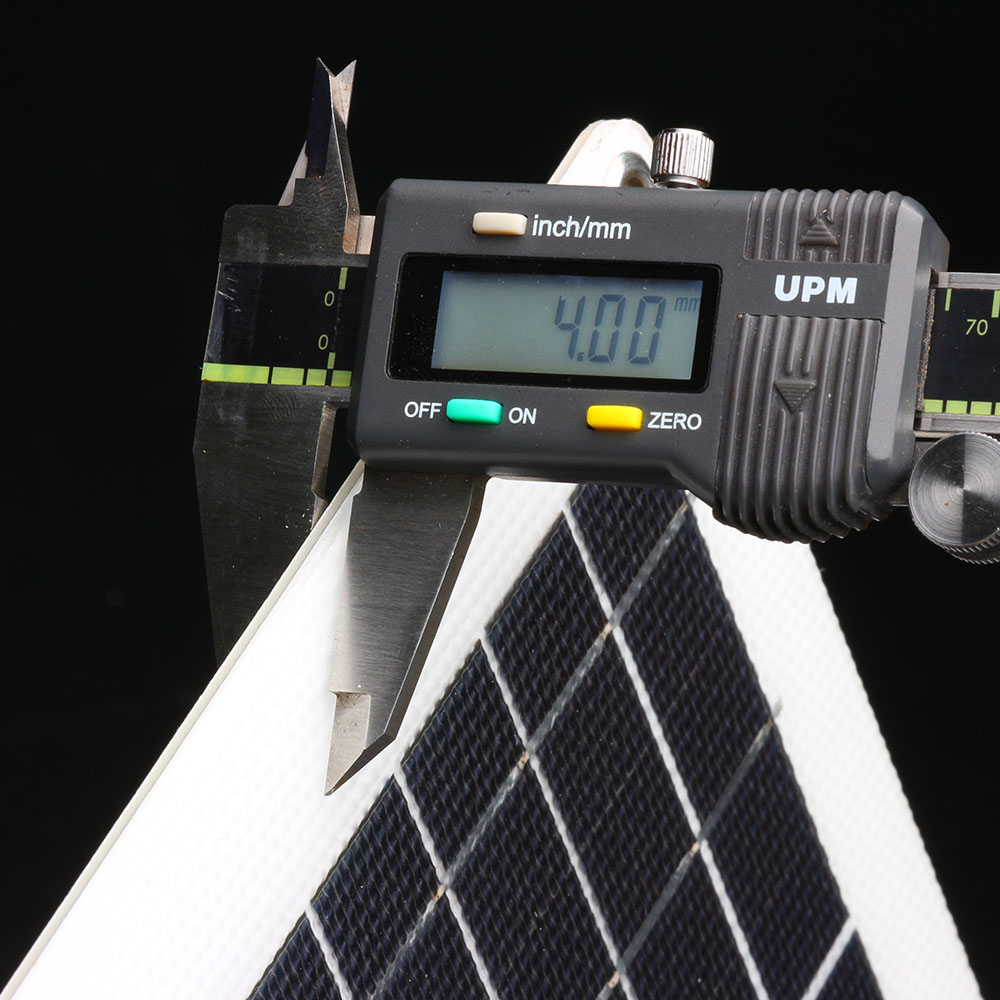

Product Dimension: 450*200*4mm
Cells Efficiency: 22.5%
Warranty: 3 Year

Specification Product Description Downloads

Model Number	BS10-FA-M(E)
Max Power Pm(Wp)	10W
Max Working Voltage (Vmp)	18V
Max Operating Current(Ipm)	0.55A
Open Circuit Voltage (Voc)	21.6V
Short Circuit Current (Isc)	0.59A
Product Size	4502004mm
Weight	0.65Kg
Solar Cell	Mono crystalline
Efficiency	22.5%
Warranty	3 Year
Weight	0.65 KG

Features

10-15% Flexibility
Highly resistant and heat dissipation touch substrate back sheet
Medium Lighter weight
100% sea & salt water resistant
DuPont ETFE surface UV Resistance & reduce slip risks,100% maintenance-free, easy to install
0~3% tolerance output power
PERC solar cells or SunPower solar cell with highest performance,lP67 junction box cable output, sealed and fully waterproof.
Cable : 3m length cables or 2*1m with MC4 connectors.304 stainless steel eyelets for easy fixing and installation.Gule solution for installation.
Rounded corners +plastic cover for protection*Optional:blocking diode and bypass diode , avoid shadow.Anti-Hotpot design
3 years warranty power output

Product information

Flexible solar panel M series.pdf Download
